MAXL-OL-2070

±70g sensing range open loop accelerometer

MAXL-OL-2070 is a state-of-the-art inertial sensor based on a unique MEMS device, designed to provide high stability and low noise measurement.

Accelerometer’s one year bias repeatability of 7 mg and one year scale factor repeatability of 600 ppm, and VRE below 120  µg/ g2 rms enable excellent measurement accuracy for inertial navigation and vibration sensing applications.

A specially developed ASIC utilized in MAXL-OL-2070 produces a differential analog voltage output proportional to acceleration along with a temperature – proportional voltage output that can be used for system needs. The output voltage range is ± 1.5 V.

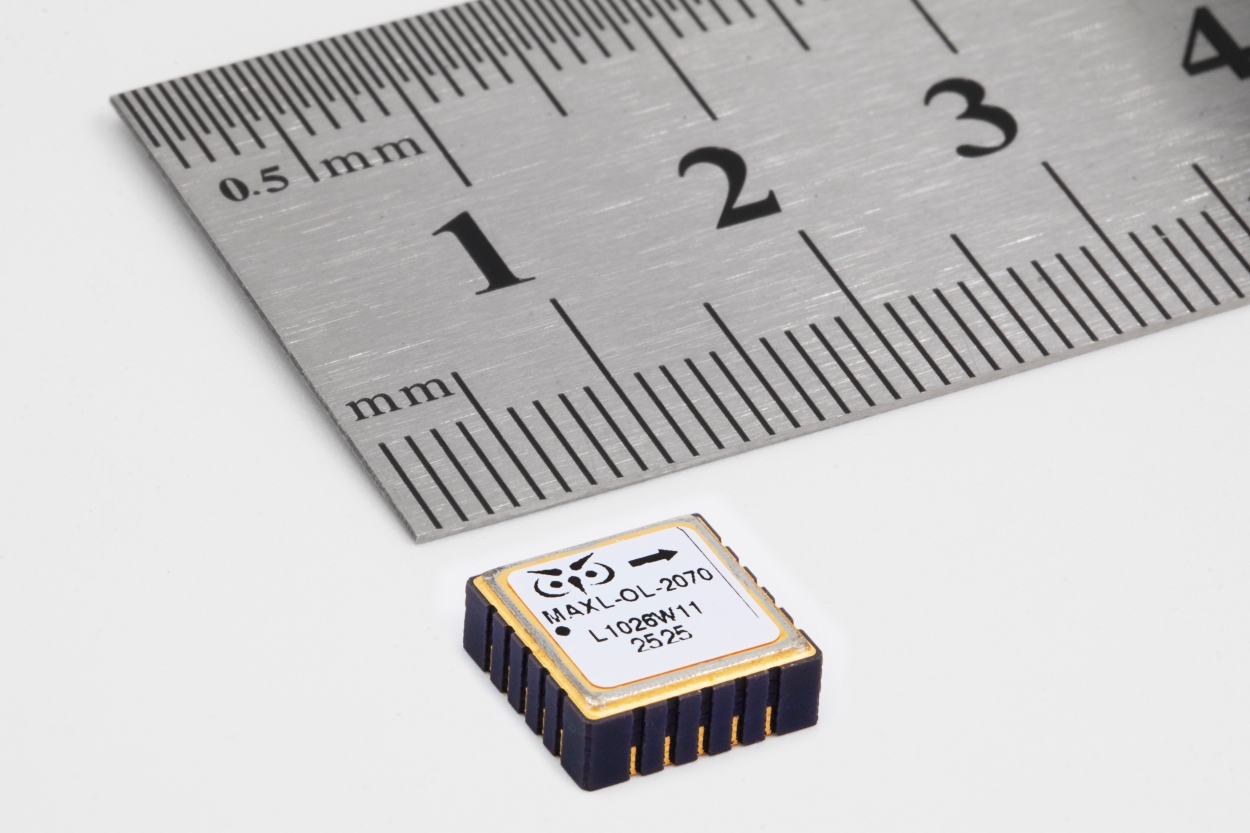

A highly advanced device, the MAXL-OL-2070 provides a sensing range of ± 70 g, it operates from a single power supply voltage of 3.3 V with <13 mA current consumption. The sensor is packaged in a hermetically sealed LCC20 ceramic package.

Key Parameters

  • Sensing range: ±70 g
  • Equivalent Noise density in band: 5 µg/√Hz (max)
  • Bias repeatability: 5 mg (1σ)
  • Scale factor repeatability: 600 ppm (1σ)
  • Non linearity: 0.3% of full range (1σ)
