MAXL-CL-3030

±30g sensing range closed loop accelerometer

MAXL-CL-3030 is a high performance accelerometer based on a unique MEMS device and ASIC designed for tactical and inertial navigation applications, providing a digital acceleration output.

The Accelerometer is available in several performance grades offering excellent measurement accuracy for a large range of inertial navigation and vibration sensing applications.
With specifications such as one-year bias repeatability of 0.5 mg, one year scale factor repeatability of 400 ppm, and VRE below 20 µg/ g2 rms, this family of accelerometers provides highly advanced performance.

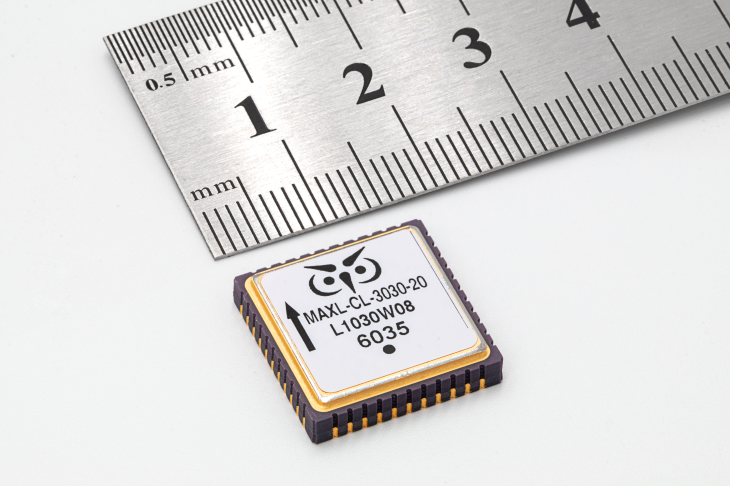

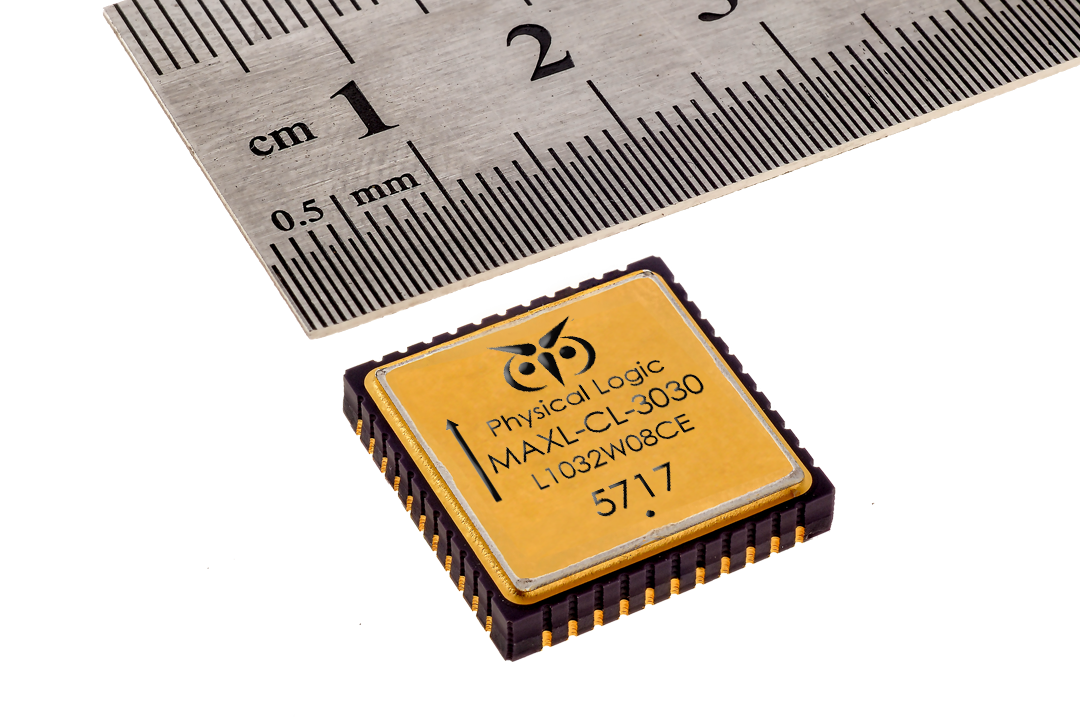

The MAXL-CL-3030 features an input range of ± 30 g and operates from a single power supply voltage of 5 V with < 75 mA current consumption. The sensor’s system is composed of an LCC44 hermetically sealed package mounted on an interface board for customer evaluation and prototype testing. According to a specified ICD, Physical Logic offers its customers assembly and testing of accelerometers on customer integration boards.

Key Parameters

Parameter

Value

MAXL-CL-3030-10

MAXL-CL-3030-20

MAXL-CL-3030-30

Full Scale

g

±30

±30

±30

Bandwidth

Hz

>300

>300

>300

Minimum Allan Variance

µg

<15

<15

<15

Noise Density

µg/√Hz

<60

<60

<60

SF Short Term Stability (5h)

ppm

<150

<80

<50

SF One Year Repeatability

ppm

<800

<400

<400

SF Temperature Sensitivity

ppm/°C

<200

<150

<150

SF Temp. Residual Error

ppm

<300

<200

<150

SF Linearity Error (full range)

ppm

<300

<300

<300

Bias Short Term Stability (5h)

µg

<180

<120

<80

Bias One Year Repeatability

µg

<4000

<1200

<500

Bias Temperature Sensitivity

µg/°C

<600

<300

<150

Bias Temp. Residual Error

µg

<600

<500

<250

VRE (20-2000 Hz)

µg/g2 RMS

<30

<25

<20
