Home > Product > MAXL-OL-2010

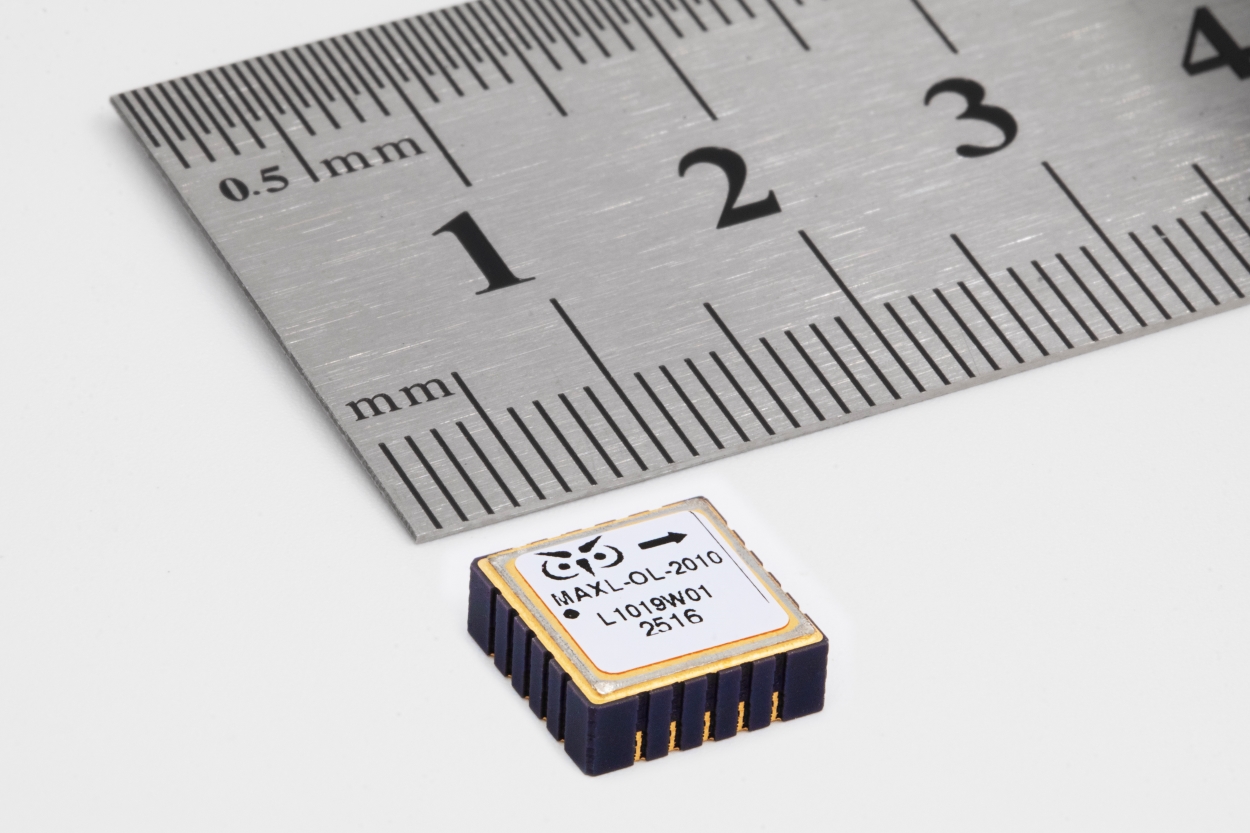

±10g sensing range open loop accelerometer

MAXL-OL-2010 is a state-of-the-art inertial sensor based on a unique MEMS device, designed to provide high stability and low noise measurement.

Accelerometer’s one year bias repeatability of 1.5 mg and one year scale factor repeatability of 600 ppm enable excellent measurement accuracy for tilt inertial navigation applications.

A specially developed ASIC utilized in MAXL-OL-2010 produces a differential analog voltage output proportional to acceleration along with a temperature – proportional voltage output that can be used for system needs. The output voltage range is ± 1.5 V.

A highly advanced device, the MAXL-OL-2010 provides a sensing range of ± 10 g, it operates from a single power supply voltage of 3.3 V with <13 mA current consumption. The sensor is packaged in a hermetically sealed LCC20 ceramic package.

Key Parameters

  • Sensing range: ±10 g
  • Equivalent Noise density in band: 3 µg/√Hz (max)
  • Bias repeatability: 1.5 mg (1σ)
  • Scale factor repeatability: 600 ppm (1σ)
  • Non linearity: 0.3% of full range (1σ)
